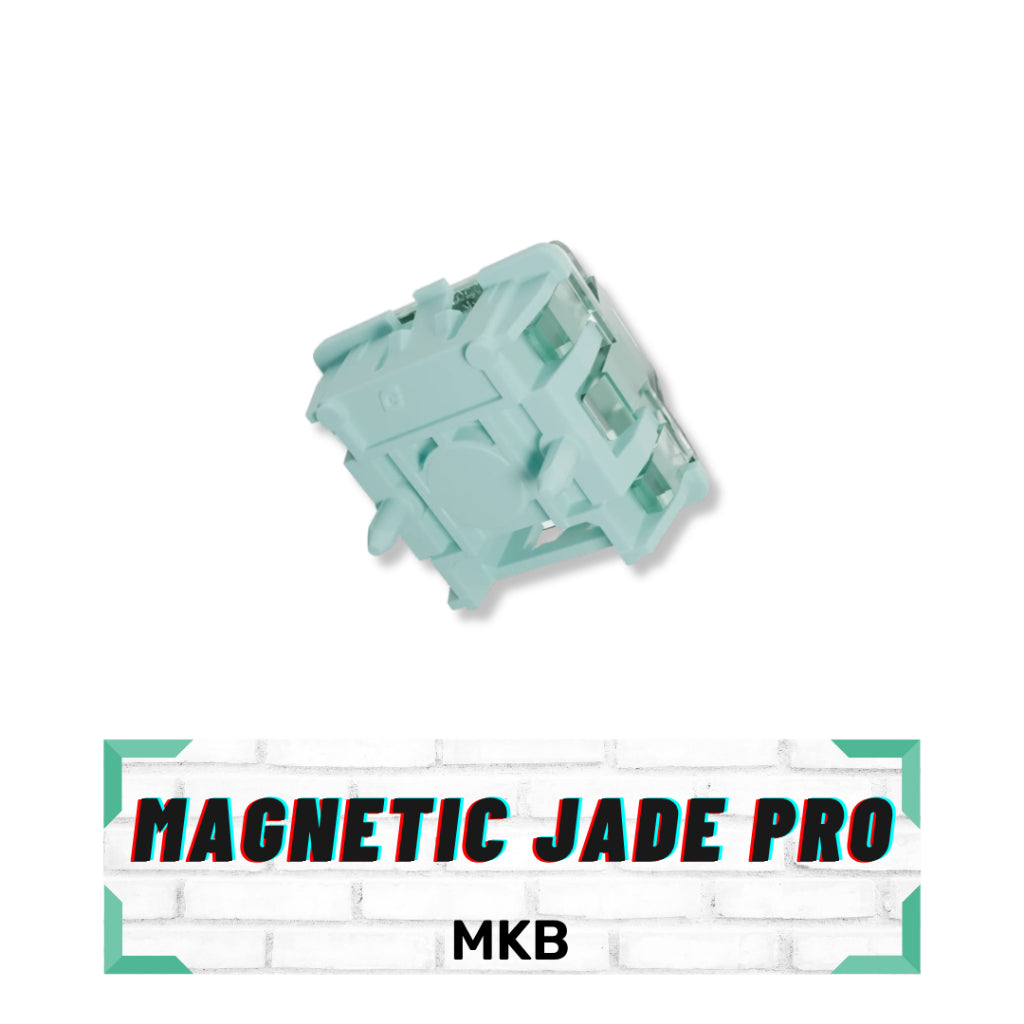

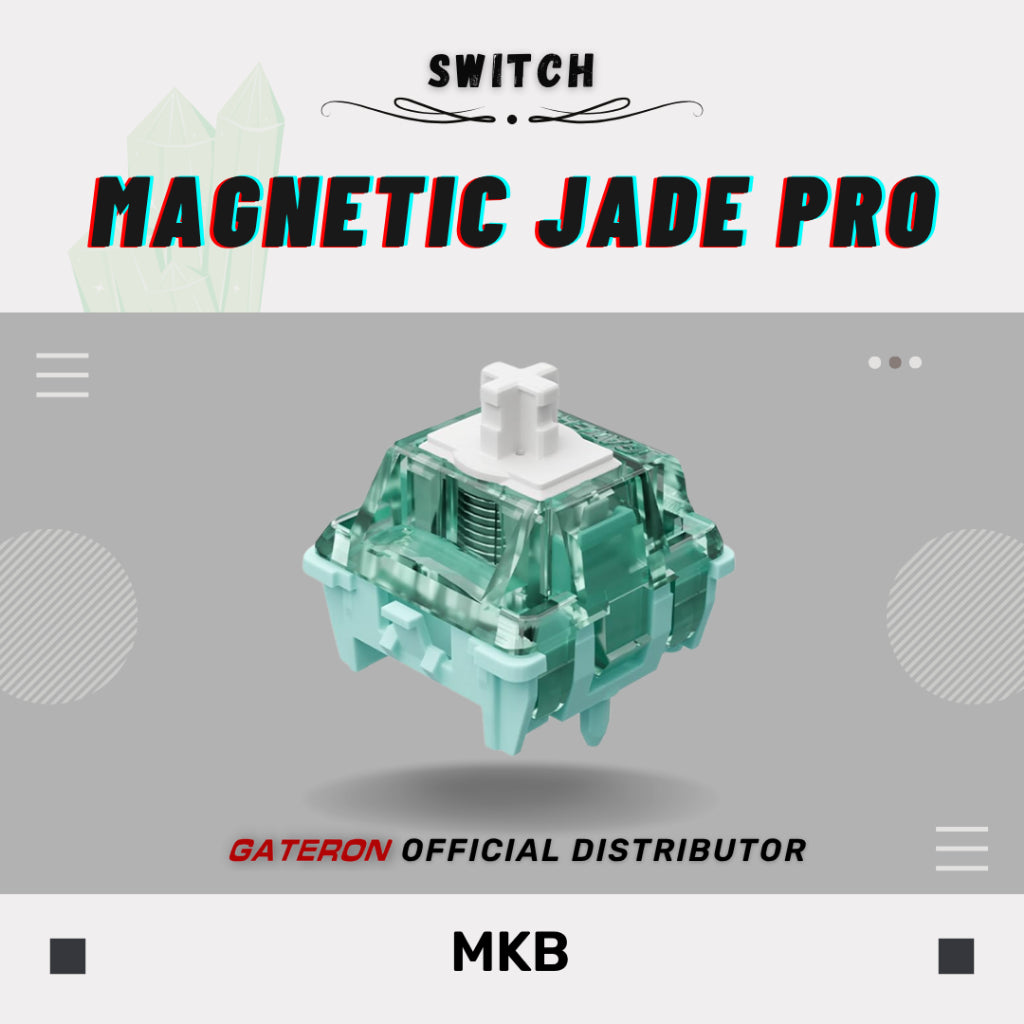

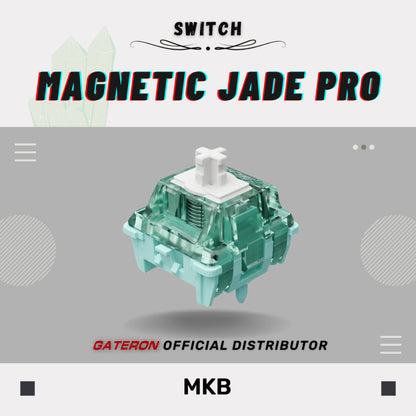

Gateron Magnetic Jade Pro

The Gateron Magnetic Jade Pro HE Switch is a smooth, linear Hall-effect switch with a 36 g actuation force and snappy 20 mm spring for fast rebound. It features reduced wobble, factory lube, HIFI “Mahjong” acoustics, and RGB-ready housing. Designed exclusively for Hall-effect keyboards, not standard mechanical ones.

-Initial Force: 36士5gf
-Total Travel: 3.5±0.1mm
-Initial Magnetic Flux: 120±8GS (PCB1.2mm)
-Bottom-out Magnetic Flux: 700±30GS (PCB1.2mm)

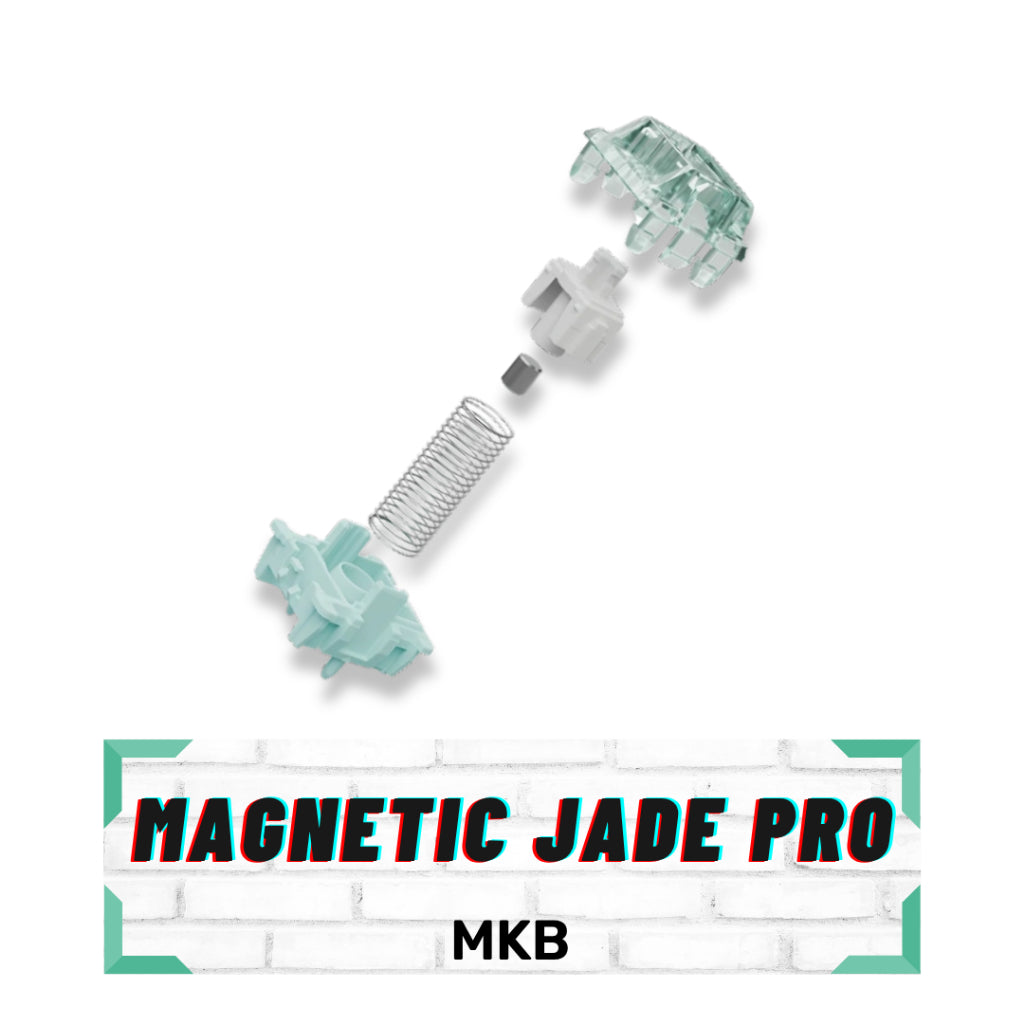

Linear MX Magnetic Switch
PC Top Housing
Light Green PA66 Bottom Housing
White POM Stem

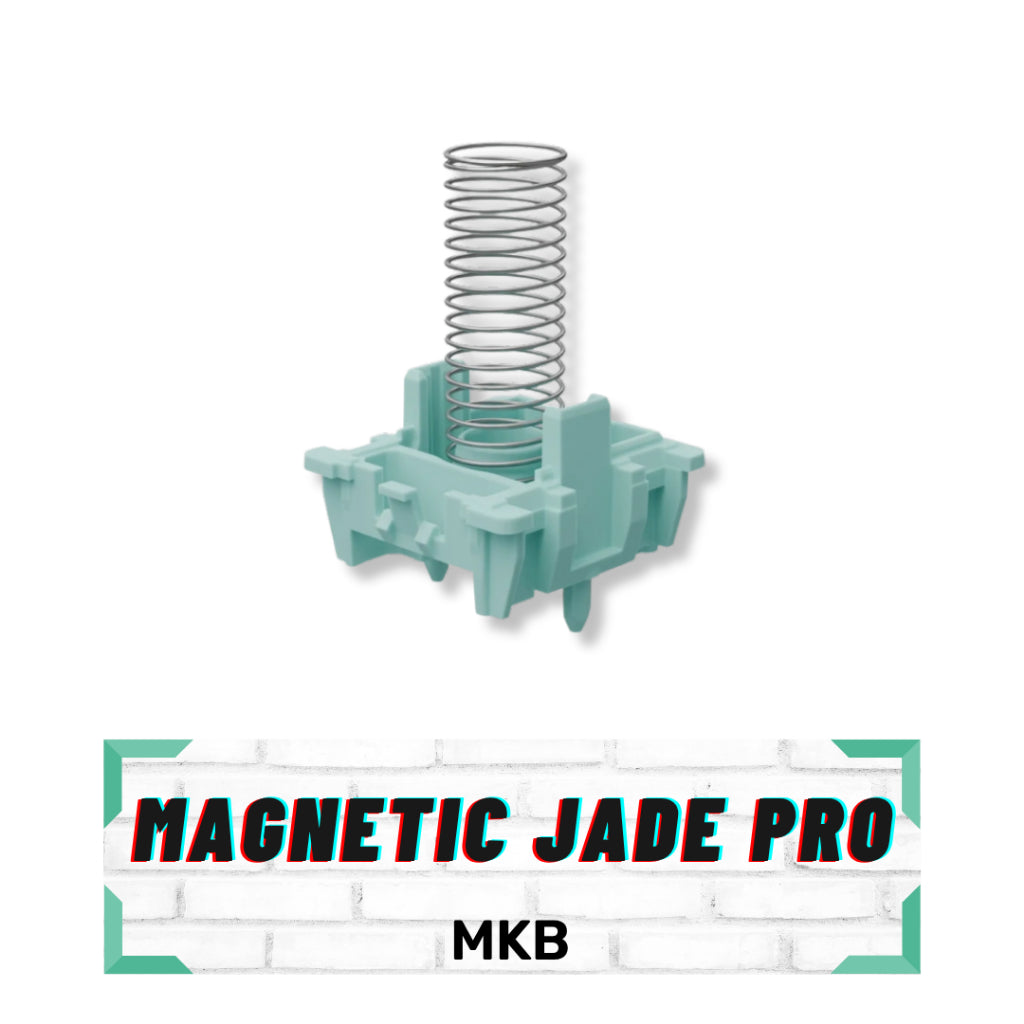

20mm customized spring
100 million times keystrokes
Factory Prelubed
